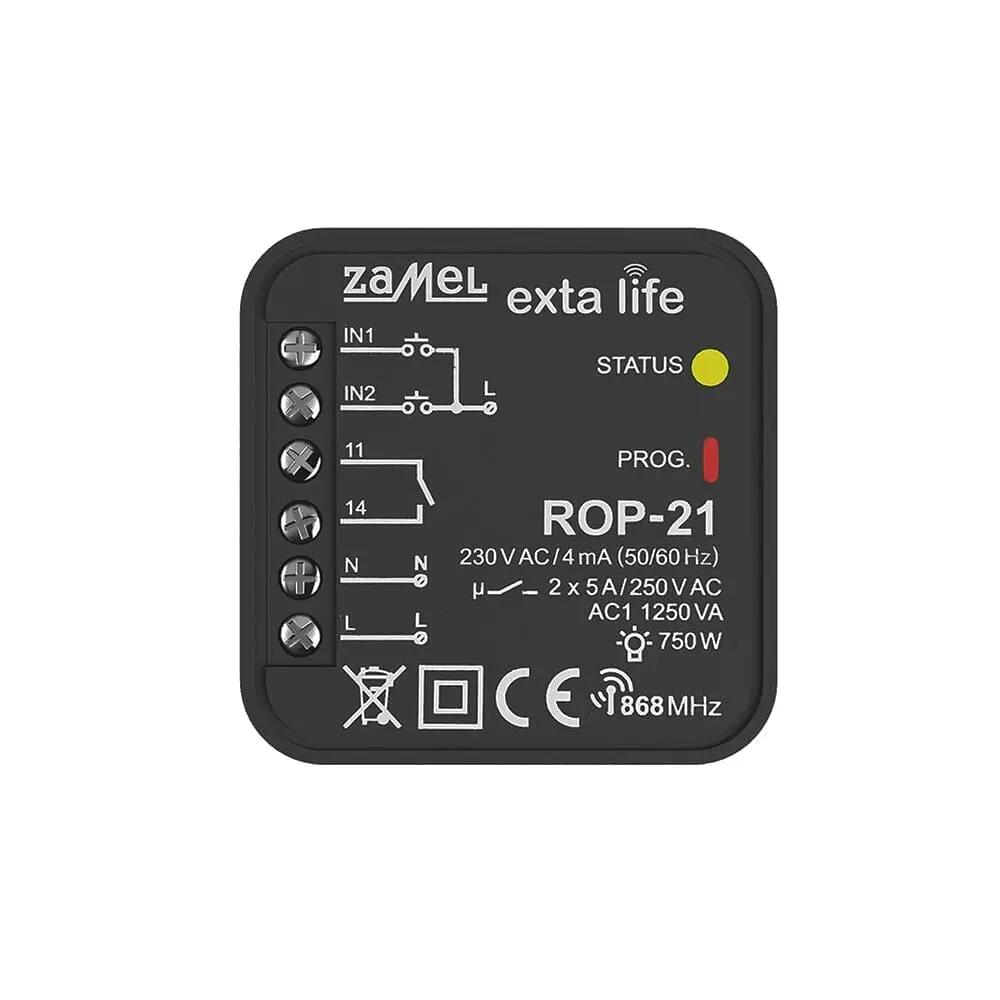

Zamel ROP-211 Radio Receiver

The ROP-21 radio receiver is part of the EXTA LIFE system, which allows for the control of various devices at home or in the office. It offers the ability to control low-voltage installations (e.g., 12/24 V AC/DC) as well as high-voltage installations (230 V AC). The current status of devices controlled by the ROP-21 can be checked via bidirectional communication in the app. The coding algorithm guarantees security during control. Multiple radio transmitters can be programmed to a single receiver, allowing for independent control from several locations. Installation is possible in flush-mounted and surface-mounted boxes. There is also the option for automatic software updates via the controller.

• Thanks to bidirectional communication, the device software is automatically updated in the Exta Life app. You can check the current status at any time, even when away from home.
• The ROP-21 can be controlled by multiple transmitters simultaneously.
• The ROP-21 works with various types of buttons and switches. The relay output status can be fully configured via the Exta Life app.
• The ROP-21 can be used to control items such as garage doors.
• The ROP-21 enables automatic software updates, ensuring the automation never becomes outdated.
• Flush-mounted installation
• Mains power supply
• Number of relays: 1.000
• Suitable for switches: Yes
• Suitable for push-buttons: Yes
• Suitable for dimmers: No
• Suitable for roller shutter switches: No
• Radio frequency: 868.000 MHz
• Protection class (IP): IP20
• Transmission: Radio - ISM 868 MHz (868.50 MHz)
• Radio transmission: Radio, bidirectional - ISM 868 MHz (868.50 MHz)
• Optical indicator for radio transmission: RGB LED
• Maximum number of transmitters
• Function mode with EFC-01: switch on, switch off, time delay
• Compatibility with adapter: monostable (buttons), bistable
• Function mode of external inputs
• Height: 47.50 mm
• Width: 47.50 mm
• Depth: 20.0 mm
• Weight: 0.043 kg

Scope of delivery: 1 piece
