The Portos Delux series drives are the premium line of Portos roller shutter motors. They are operated using the Selve Iveo transmitter range and run on a protected 868 MHz frequency. Please note that the Portos RR and PX series handheld transmitters are not compatible with this series. Due to its protected frequency, the Delux motor acts as an additional security feature for your window.

DISCONTINUED MODEL. NO LONGER IN PRODUCTION!

• Reliable 868 MHz transmission frequency
• Highly sensitive obstacle detection mechanism
• Obstacle detection in downward direction with reversing (clearing the obstacle)

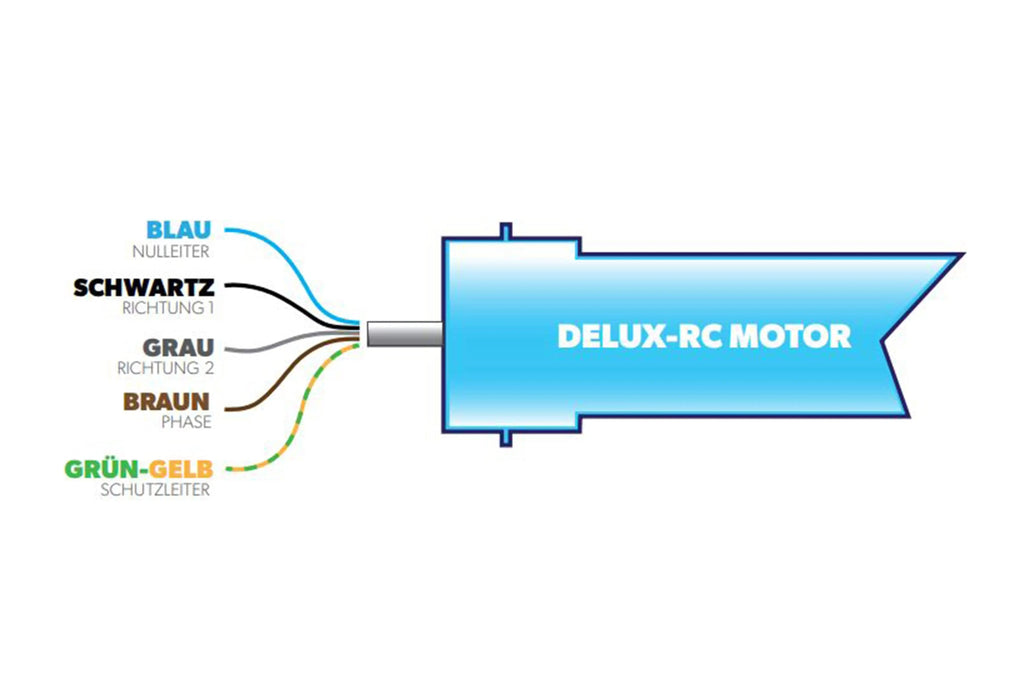

• Direct connection of a wall switch to the wireless motor is possible
• Optional setting of two comfort positions – intermediate position and ventilation/tilting
• Intuitive, automatic programming of a roller shutter (after one full cycle)
• Automatic assignment of rotation direction (up/down) during drive programming
• No anti-lift devices necessary
• Intuitive programming and assignment of handheld transmitters or switches
• No roller shutter power-off required for group assignment
• Simple group assignment and central control
• Easy assembly and disassembly of the motor via a "quick connector"
• Made in Germany

• Nominal torque 7Nm

• Nominal speed 17 rpm

• Tube diameter 60mm
• Power consumption 95W

• Nominal voltage 230V
• Frequency 50Hz
• Current 0.41 A
• Operating time 4 min.
• Cable length 2.5m
• Protection class IP44
• Total length 511mm

Scope of delivery: 1 piece with connection cable
